Oil-free Diesel Portable( dry srew ) Air Compressor
Power：7.5-250kw
Working Pressure：0.75-1.3Mpa
Air Capacity：0.28m³/min-45.32m³/min
Voltage：380V, 110V, 220V,ets.
- Overview
- Product Advantages
- Technical Parameters
- Application Scenarios
- FAQ

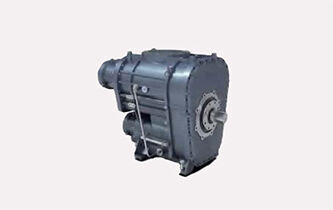

High quality Air End
Adopting innovative 5:6 asymmetric rotor tooth profile, the core components feature high precision and excellent stability. Service life is extended by over 30%, reducing replacement costs for enterprises.

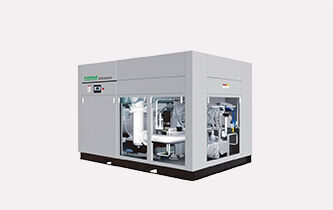

Material
Piping system uses 304 stainless steel, offering strong corrosion and aging resistance. Service life doubles compared to carbon steel models, ideal for chemical, food processing industries.
High-precision air end
High-precision rotors provide greater stability. Stable gas production and longer life.
Specialised Control System
Specialised control system for air compressor, including multiple pressure sensors and temperature sensors, more accurate detection of the operating status of the unit.
| Model | Power（kW） | Pressure（MPa） | Exhaust Vol.（m³/min） | Cooling Method |
Size(mm) | Weight（kg） | Outlet Diameter |
| FAV-7 | 7.5KW | 0.75-1.3 | 0.28-1.2 | Air/Oil | 760*620*840 | 140 | R1/2 |
| FVA-11 | 11KW | 0.75-1.3 | 0.41-1.97 | Air/Oil | 1000*750*1020 | 240 | R3/4 |
| FVA-15 | 15KW | 0.75-1.3 | 0.66-2.6 | Air/Oil | 1000*750*1020 | 240 | R3/4 |
| FVA-18 | 18KW | 0.75-1.3 | 0.88-3.16 | Air/Oil | 1180*850*1160 | 310 | R1 |
| FVA-22 | 22KW | 0.75-1.3 | 0.95-3.85 | Air/Oil | 1180*850*1160 | 310 | R1 |
| FVA-30 | 30KW | 0.75-1.3 | 1.55-5.51 | Air | 1180*850*1160 | 310 | R1 |
| FVA-37 | 37KW | 0.75-1.3 | 1.81-6.8 | Air/Oil | 1280*1000*1290 | 500 | R1-1/2 |
| FVA-45 | 45KW | 0.75-1.3 | 2.18-8.1 | Air/Oil | 1280*1000*1290 | 500 | R1-1/2 |
| FVA-55 | 55KW | 0.75-1.3 | 2.76-10.2 | Air/Oil | 1900*1250*1560 | 1000 | R2 |
| FVA-75 | 75KW | 0.75-1.3 | 3.67-12.46 | Air | 1900*1250*1560 | 1100 | R2 |
| FVA-90 | 90KW | 0.75-1.3 | 4.72-15.55 | Air | 1900*1250*1560 | 1200 | R2 |
| FVA-110 | 110KW | 0.75-1.3 | 5.19-19.53 | Air | 2300*1470*1840 | 1600 | DN80 |
| FVA-132 | 132KW | 0.75-1.3 | 6.57-22.41 | Air | 2300*1470*1840 | 1800 | DN80 |
| FVA-160 | 160KW | 0.75-1.3 | 8.42-28.12 | Air | 2300*1470*1840 | 2000 | DN100 |
| FVA-185 | 185KW | 0.75-1.3 | 9.64-30.39 | Air | 2540*1640*1840 | 2600 | DN100 |
| FVA-200 | 200KW | 0.75-1.3 | 10.93-37.18 | Air | 2540*1640*1840 | 2600 | DN100 |
| FVA-220 | 220KW | 0.75-1.3 | 11.89-42.85 | Air | 3200*1980*2150 | 3600 | DN100 |
| FVA-250 | 250KW | 0.75-1.3 | 14.42-45.32 | Air | 3200*1980*2150 | 3800 | DN100 |
General manufacturing, energy and power industry, healthcare and pharmaceuticals, food and beverage, construction and mining, textiles, paper manufacturing, shipbuilding and marine engineering, environmental protection.
Frequently Asked Questions
-
Q1: Are you a manufacturer or trading company? ▼A1: We are professional manufacturer with big modern factory in Shanghai, China. Both OEM & ODM service can be accepted.
-
Q1: Warranty terms of your machine? ▼A1: One year for the whole machine and two years for screw air end, except consumable spare parts. We provide technical support according to your needs.
